MG Saic ZS 1.5 VTI MED17 ecu tuning

mg zs med17.3.85 ecu tuning

MG Saic ZS 1.5L VTI ecu tuning Bosch ME17 MED17.8.10 MED17.3.85

mg zs 1.5 ecu tuning med17.8.10 with tunerpro xdf

New TunerPro bin definition files (XDF) for MG Saic ZS 1.5L VTI with engine control unit Bosch ME17 (also called MED17 – MED17.8.10 – ME17.8.10 – MED17.3.85).

Available also WinOLS OLSX mappack.

With OldSkullTuning XDF and OLSX you can customize the engine performance of your MG ZS 1.5L working on ignition timing maps, torque maps, fuel lambda maps, air quantity maps, rpm limiters, etc.

Knowledge, experience, calibration studies and bench tests are the starting point for the development of the above mentioned bin definition files (xdf).

A free chiptuning software combined with competitive prices (70 euro) are the milestones of our philosophy.

Through the definition files, the remapping software TunerPro identifies the engine working parameters which allow to obtain the maximum power and torque without affecting the degree of reliability.

TunerPro is a binary files editor, not able to read and write the engine control unit. To do this, you need an external tool. We don’t provide information about these tools.

mg zs med17.3.85 ecu tuning


Price for each xdf: 70 euro.

Supported vehicles are available in the main petrol cars bin definition files area.

Read more about our Terms & Conditions.

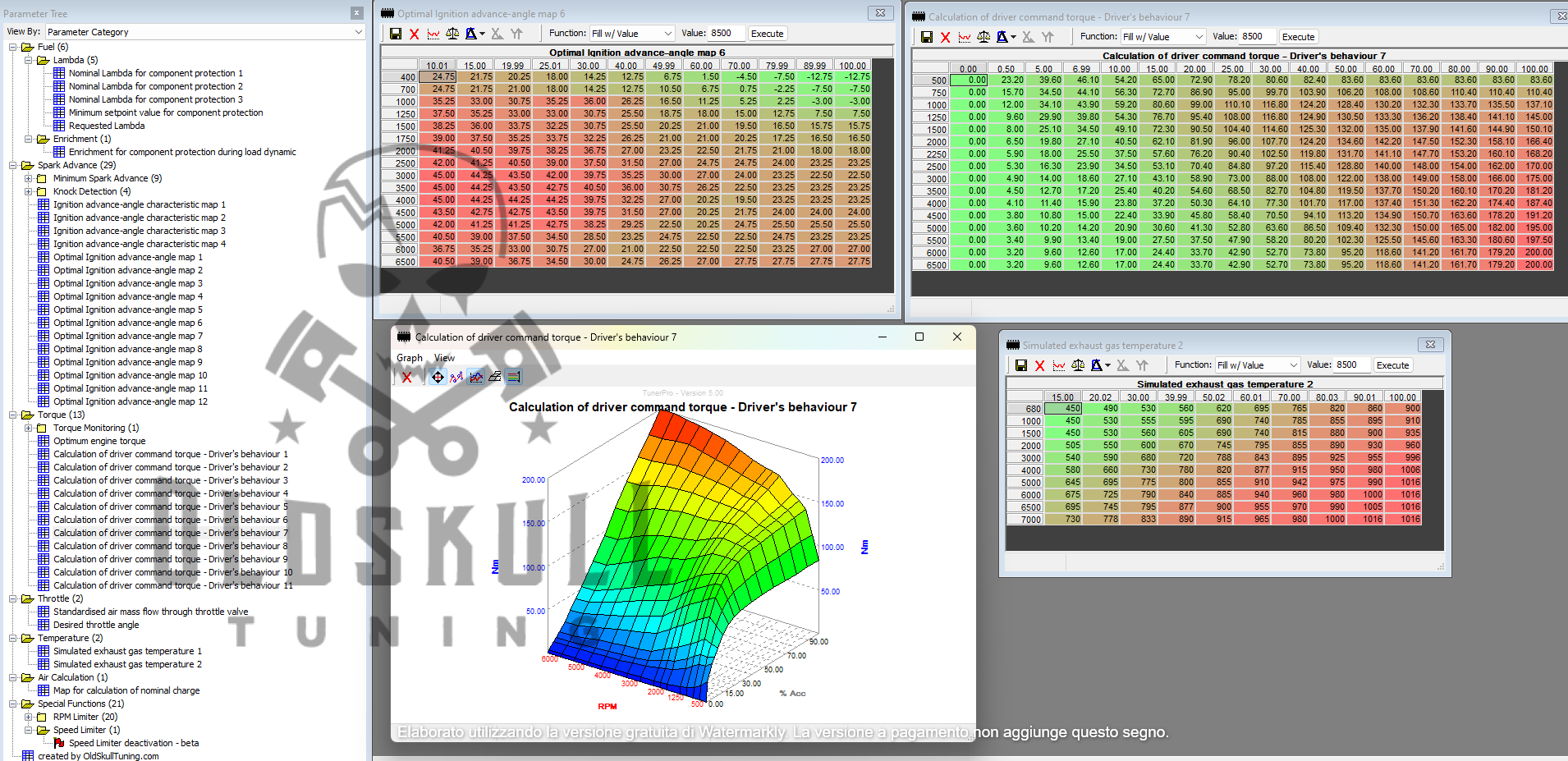

TunerPro available maps

Please note: the maps listed may not be present in all vehicles because of the different software update and calibration numbers.

  • Fuel: nominal lambda for component protection, minimum setpoint value for component protection, requested lambda, enrichment for component protection during load dynamic.
  • Ignition: minimum spark advance, knock detection, ignition advance angle characteristic map, optimal ignition advance angle map.
  • Torque: maximal inner torque in function monitoring, optimum engine torque, calculation of driver command torque – driver’s behaviour.
  • Throttle: standardized air mass flow through throttle valve, desired throttle angle.
  • Temperature: simulated exhaust gas temperature.
  • Air calculation: map for calculation of nominal charge.
  • Special functions: rpm limiters, speed limiter deactivation (beta).
mg saic zs 1.5 vti me17.8.10 med17 tuning with tunerpro
